D.S. Machine Stoves

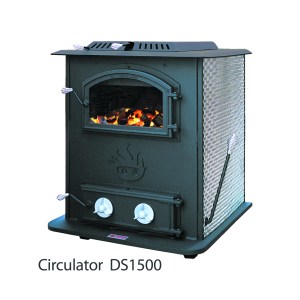

1500 CirculatorDS1500 Hot Air Circulator Stove with Coal Hopper

  • Firebox: 16″x16″
  • Size: 29″w X 37″h X 26″d
  • Removeable coal hopper
  • Also available without hopper
  • No electric or blower needed
  • No fan needed
  • Weight 560 lbs.
  • Standard 6″ flu
  • Hopper capacity – 24 to 48 hours
  • 96,000 BTU
  • UL Listed
  • Special tubes for maximum heat circulation

DS1400 Circulator with Hopper

  • Firebox: 13.5″x16″
  • Size: 26″w X 37″h X 27″d
  • Top or front loading
  • 80,000 BTU

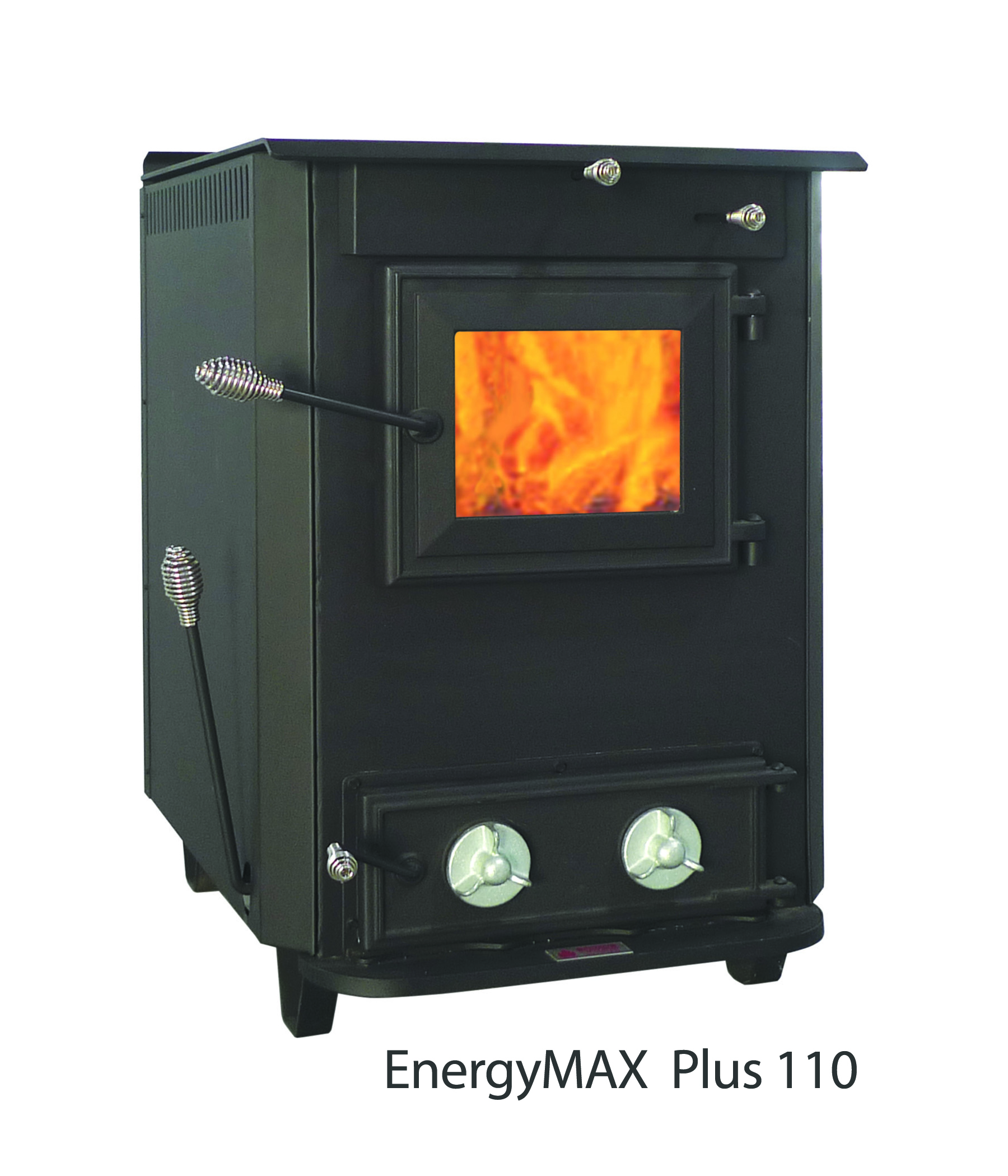

EnergyMAX Plus 110DS110 EnergyMAX Plus

  • Firebox: 14″w x 22″l
  • 110,000 BTU
  • Heats up to 2,400 sq. ft.
  • Reburn system that creates “EXTREME” clean burn for wood and coal
  • Takes 20″ logs
  • Overall size: 26″w x 37.5″h x 30d
  • Standard 6″ flue
  • Safety tested to UL standards

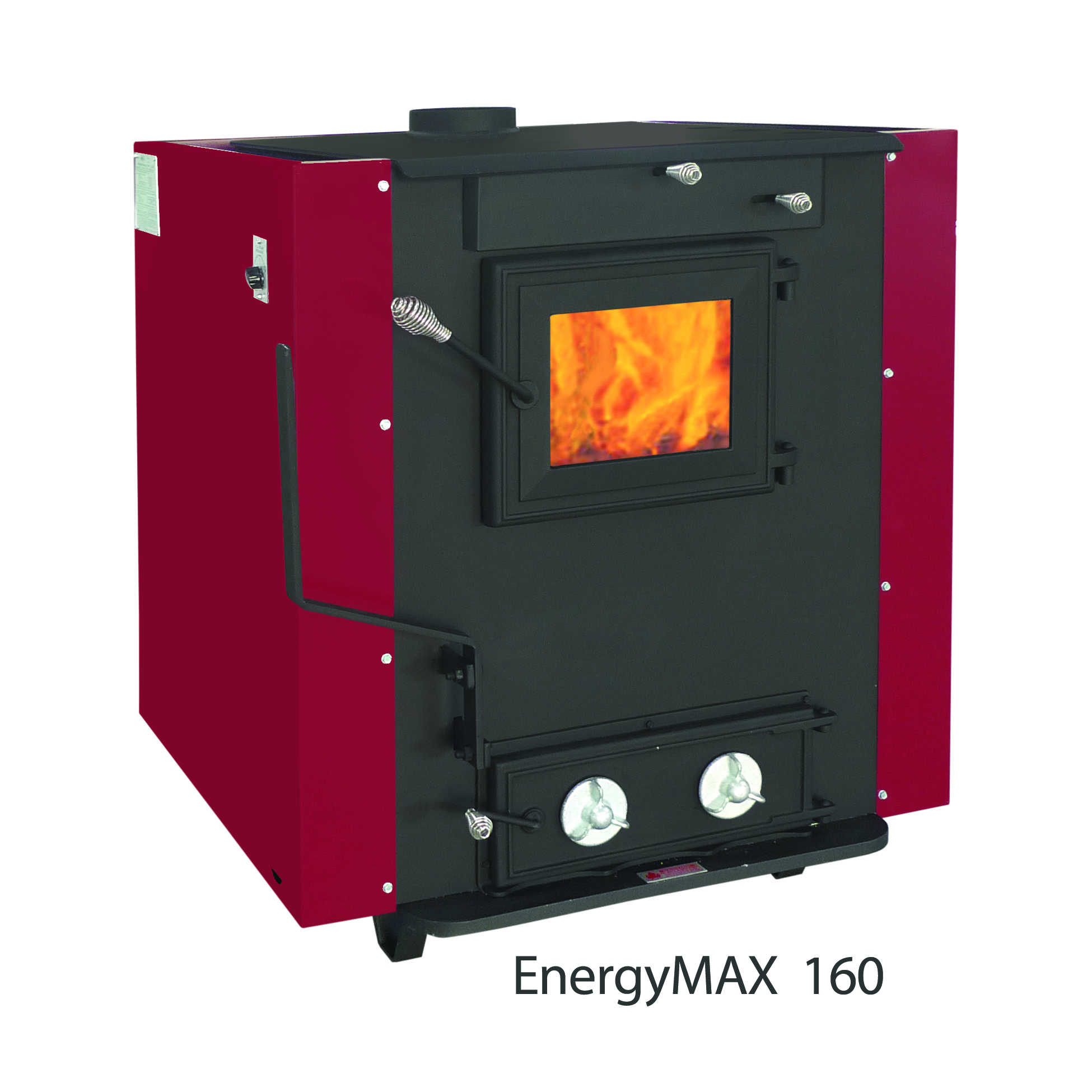

DS160 EnergyMAX 160EnergyMAX Extreme

  • Firebox: 16″w x 24″l
  • 160,000 BTU
  • Heats up to 3,000 sq. ft.
  • Reburn system that creates “EXTREME” clean burn for wood and coal
  • Takes 22″ logs
  • Standard 6″ flue
  • Safety tested to UL standards
  • This furnace is designed to heat your entire home by convection

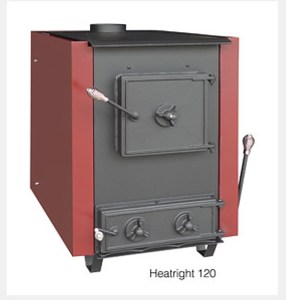

DS120 Heatright StoveDS-120Heatrite

  • 6″ Flue
  • 125,000 BTU
  • Takes 20″ Logs
  • Firebox size 16″ x 22″
  • Overall size 25.5″w x 30″d x 36.5″h
  • Heats up to 26,000 Square Feet
  • Weight 440 lbs.
  • Burns coal and wood





1624 RiteburnDS1624 Riteburn Stove

  • Firebox: 16″ x 24″
  • Oxygen afterburner
  • Downdrafter
  • Heavy 7 gauge steel top
  • 10 gauge steel sides
  • Size: 35″w x 36.5″h x 30″d
  • Standard 7″ flue
  • 150,000 BTU
  • Approx. 300 lbs.
  • UL Listed

 Boilers

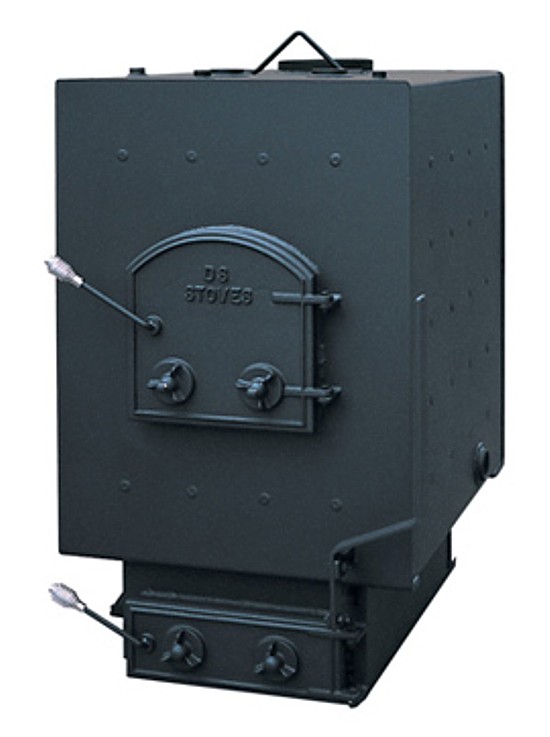

DS5000 #5CDS-5000c

  • Firebox Size 24″ x 39″
  • Size: 33″w x 53″ h x 46″d
  • Approx. 120 gal.
  • Standard 8″ flue
  • Weight approx. 1,850 lbs.
  • 380,000 BTU

DS4000 #4C

  • Firebox Size 19″ x 32″
  • Size: 33″w x 53″ h x 44″d
  • Approx. 85 gal.
  • Standard 8″ flue
  • Weight approx. 1,300 lbs.
  • 250,000 BTU

DS3000 #3C

  • Firebox Size 19″ x 26″
  • Size: 28.5″w x 53″ h x 38″d
  • Approx. 75 gal.
  • Standard 8″ flue
  • Weight approx. 1,150 lbs.
  • 200,000 BTU

DS2000 #2C

  • Firebox Size 19″ x 19″
  • Size: 28.5″w x 53″ h x 32″d
  • Approx. 65 gal.
  • Standard 7″ flue
  • Weight approx. 1,000 lbs.
  • 145,000 BTU

DS9158C Boiler9158C Boiler

  • Firebox: 18.1″d x 24″h x 25″ O.D.
  • Size: 33″ w x 53″h x 53″d
  • 32 Gallon
  • Standard 6″ flue
  • Weight 410 lbs.
  • 105,000 BTU
  • Heats up to 2,500 sq. ft.
  • Also available in stainless steel

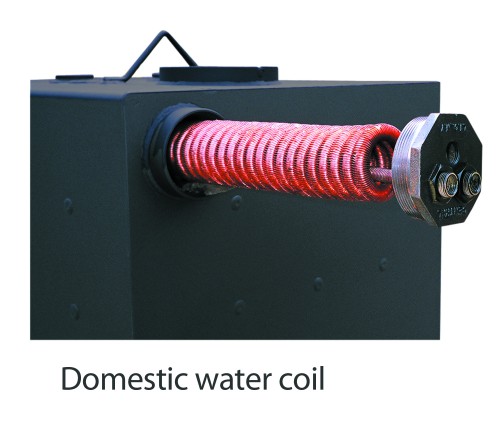

Domestic Water CoilDomestic water coil

  • 4 gallon / minute
  • This will meet your hot water needs
  • Optional Coil in back of boilers

Furnances

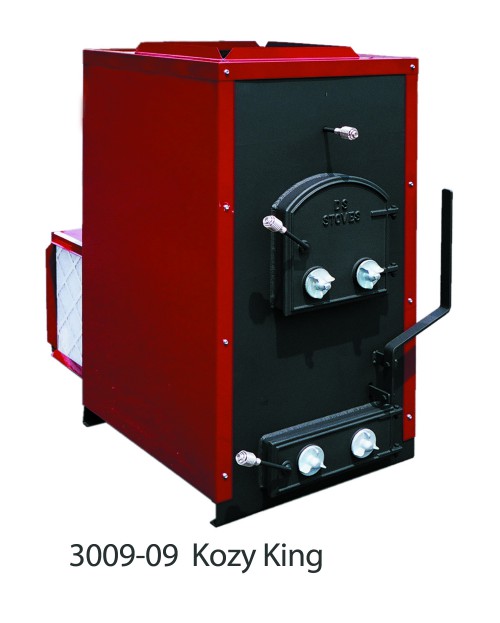

DS300-09 Hot Air Wood or Coal300-09 Kozy King

  • Size: 29″w x 53″h x 31″d
  • Firebox: 16″ x 22″
  • 140,000 BTU
  • 3-speed blower – cfm: 1,650, 1,350, 1,100
  • Automatic controlled
  • Weight 750 lbs.
  • Standard 7″ flu
  • 85.1% efficiency
  • Has secondary reburn tubes for clean burning

DS400-09

  • Size: 29″w x 53″h x 40″d
  • Firebox: 16″ x 30″
  • 205,000 BTU
  • 3-speed blower – cfm: 1,650, 1,350, 1,100
  • Fully automatic
  • Weight 850 lbs.
  • Standard 7″ flu
  • 85.1% efficiency
  • Has secondary afterburn tubes for clean burning
